Fender Strat body - Tele neck [8.0 lbs] :: document

View fullsize

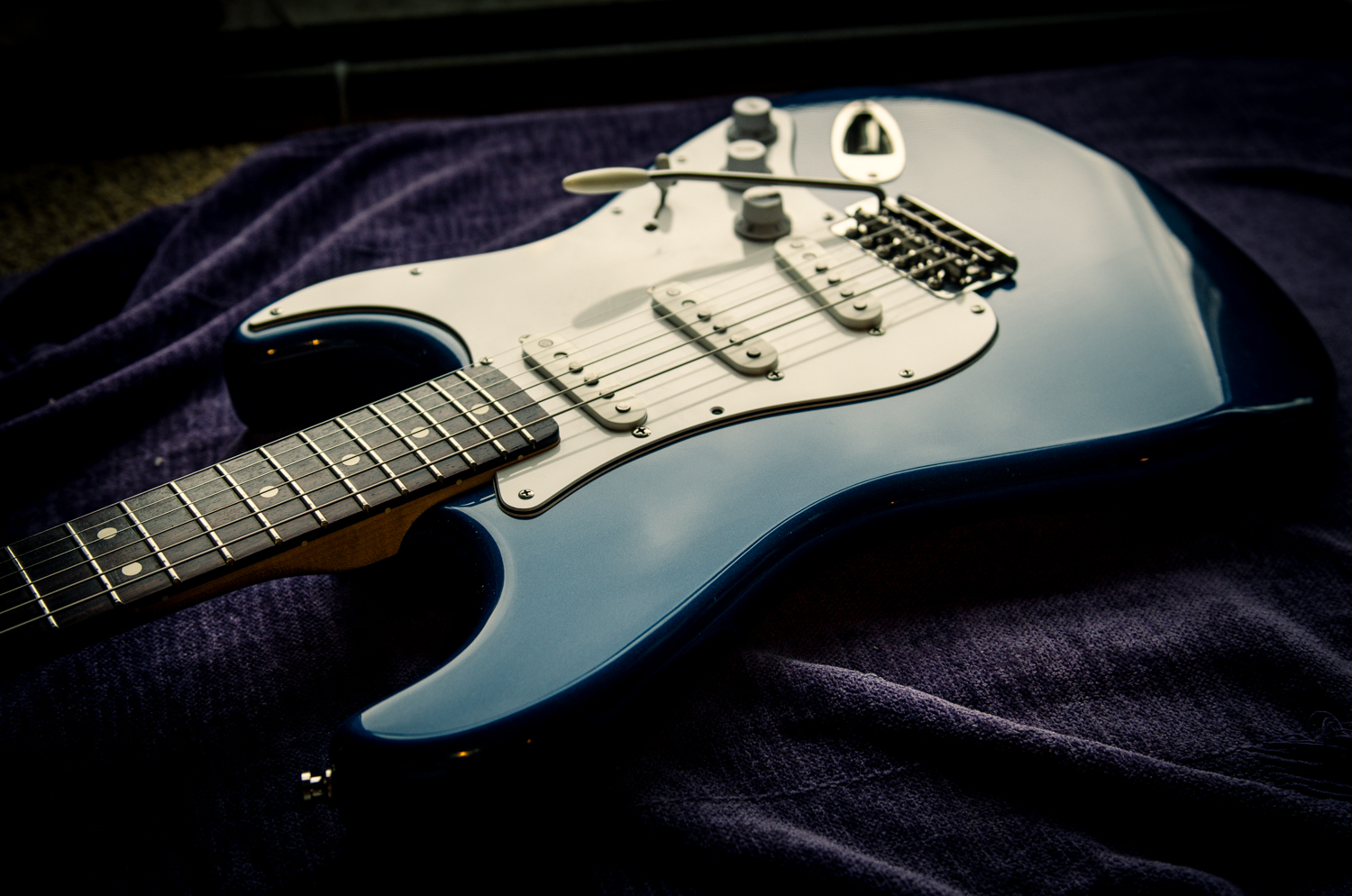

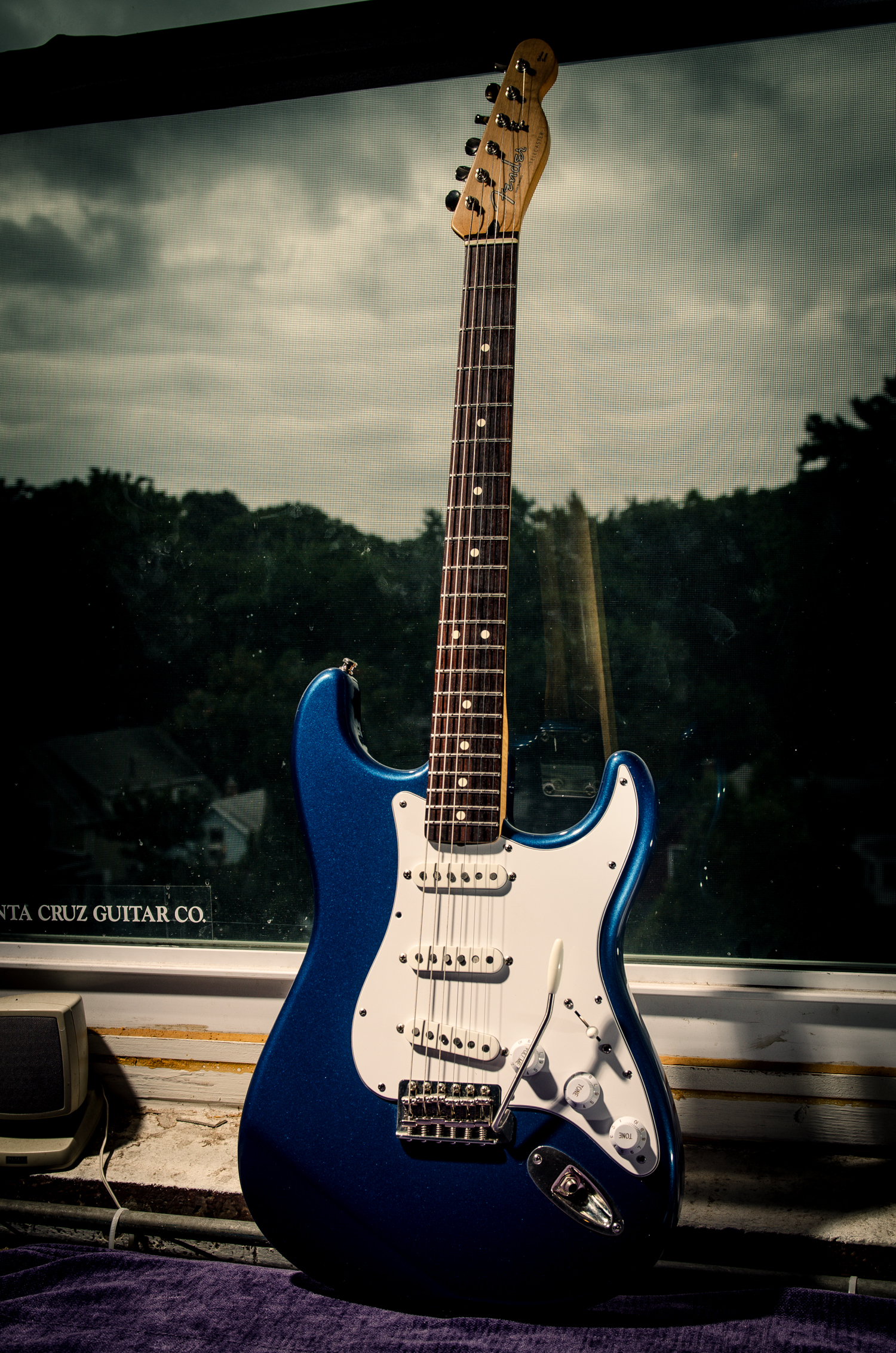

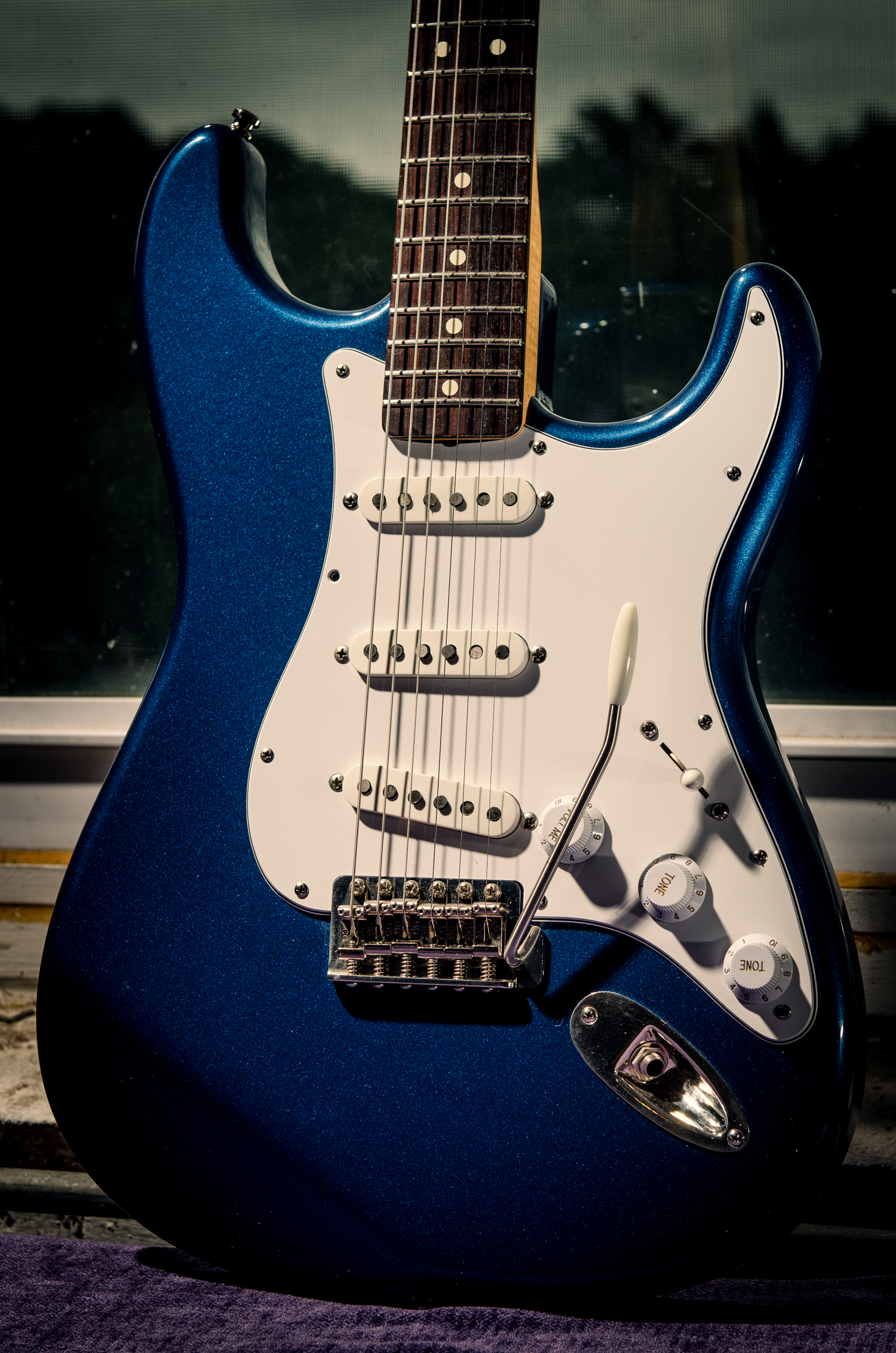

A client wanted his favorite guitar documented so I pulled it apart, took photos and wrote down some notes for him.  It's a 2000 Mexi Strat body with a Tele neck that he put together.

View fullsize

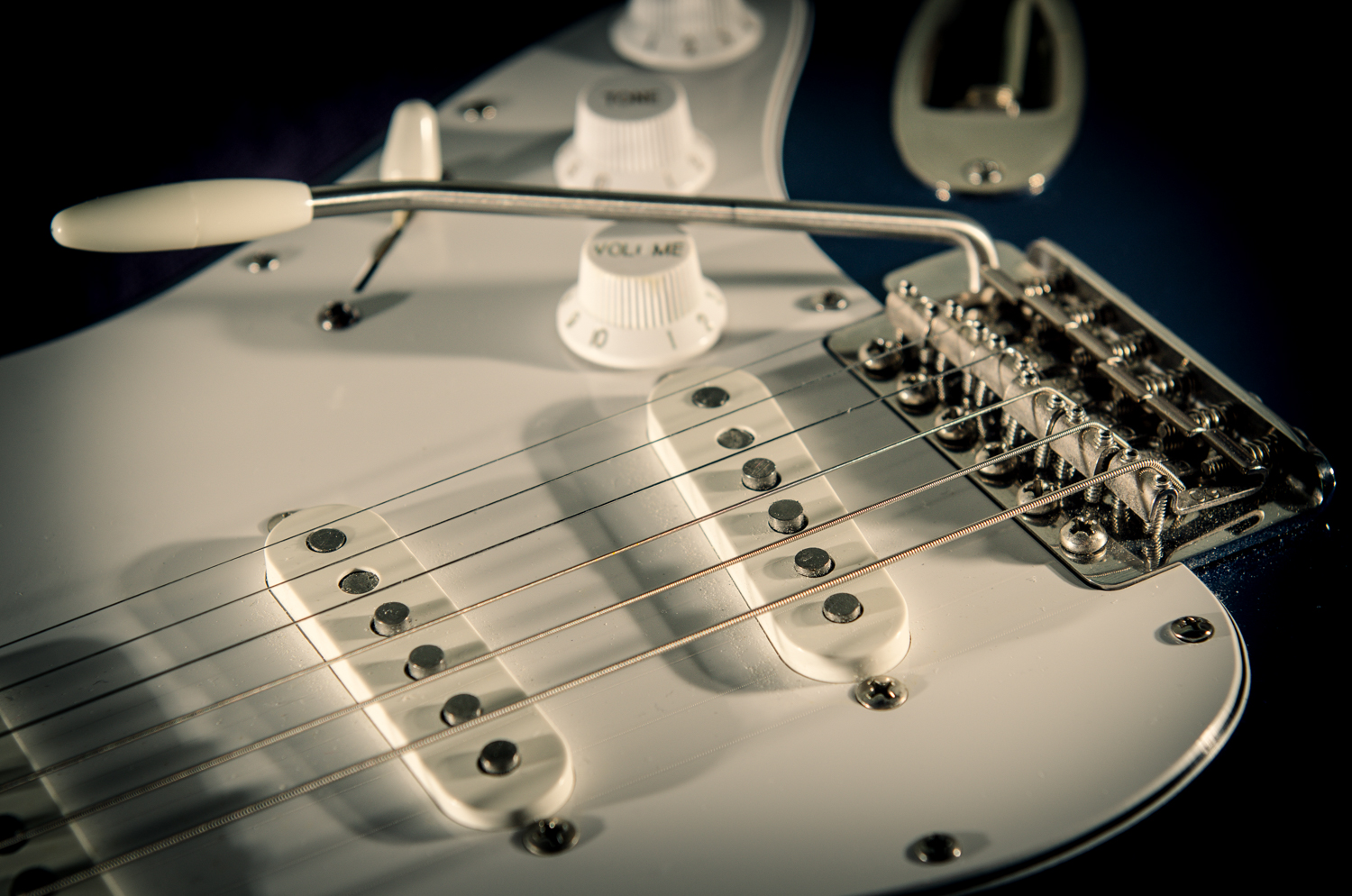

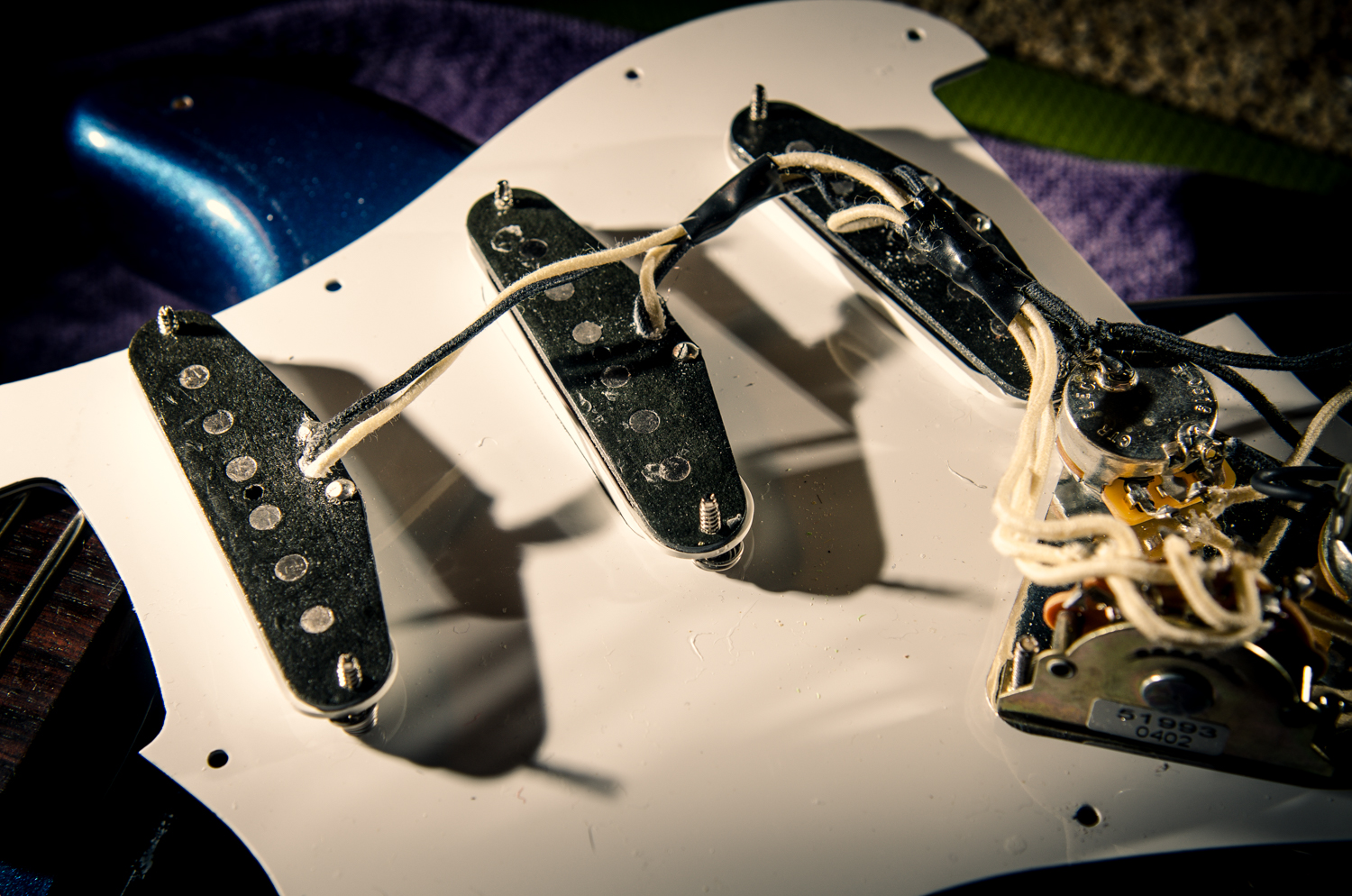

The pickguard is loaded with Fender ’57/‘62 pickups measuring 6.42K (neck),  6.45K (middle non-RWRP), 6.45K (bridge).  The middle pickup is non-reverse wound / non-reverse polarity so it is not hum cancelling in positions 2 and 4.

View fullsize

View fullsize

View fullsize

View fullsize

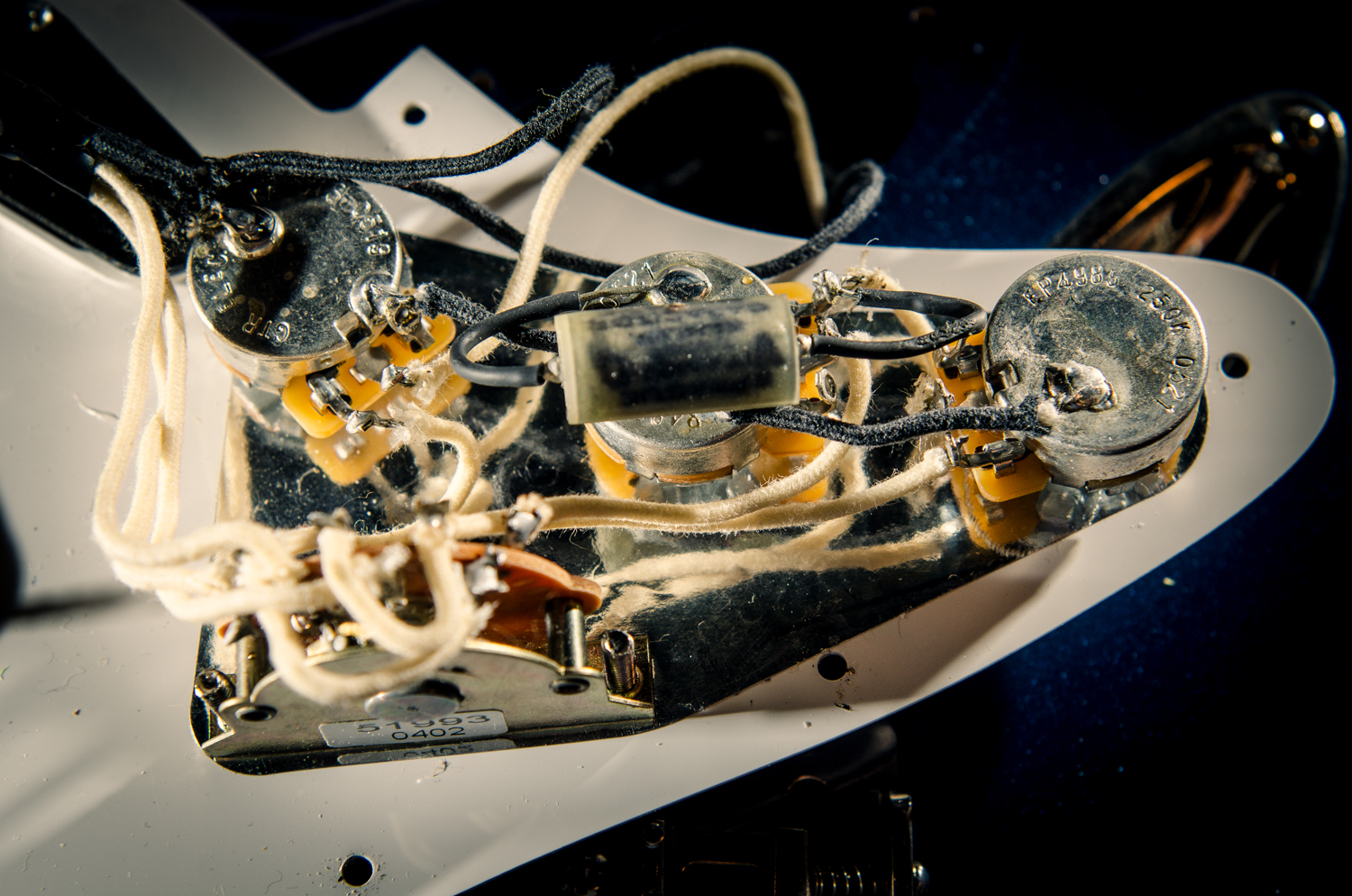

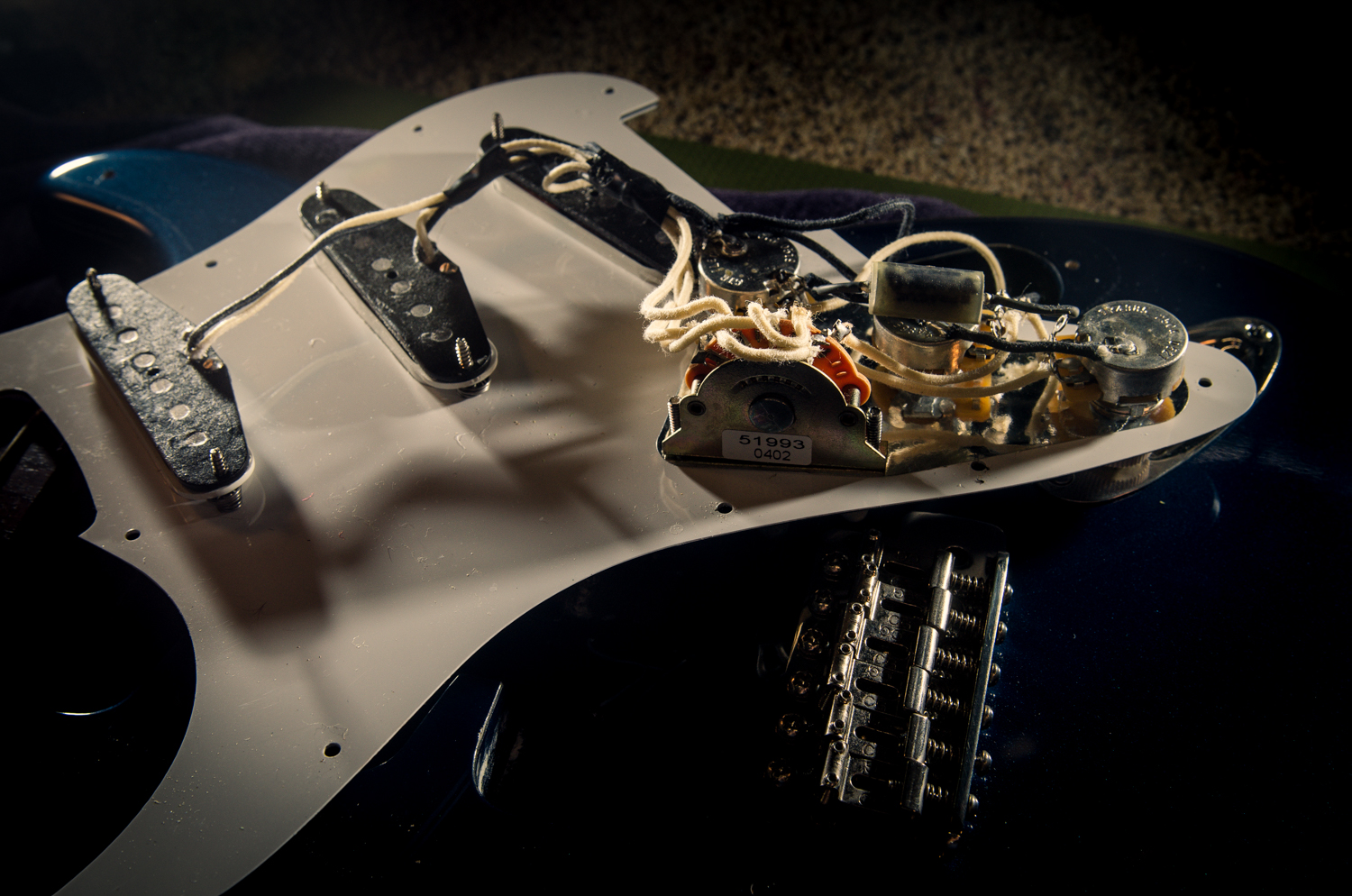

Some details of the audio path components:

• Master volume, neck & middle p/u tone, bridge p/u tone, 5-way switch
• 250K audio taper CTS volume pot “GTR ELEC 250KA CTS 0519”
• 250K linear taper CTS tone pots “EP4985 250K 0521"
• Sprague Vitamin Q 0.033 µf tone cap (shared)

View fullsize

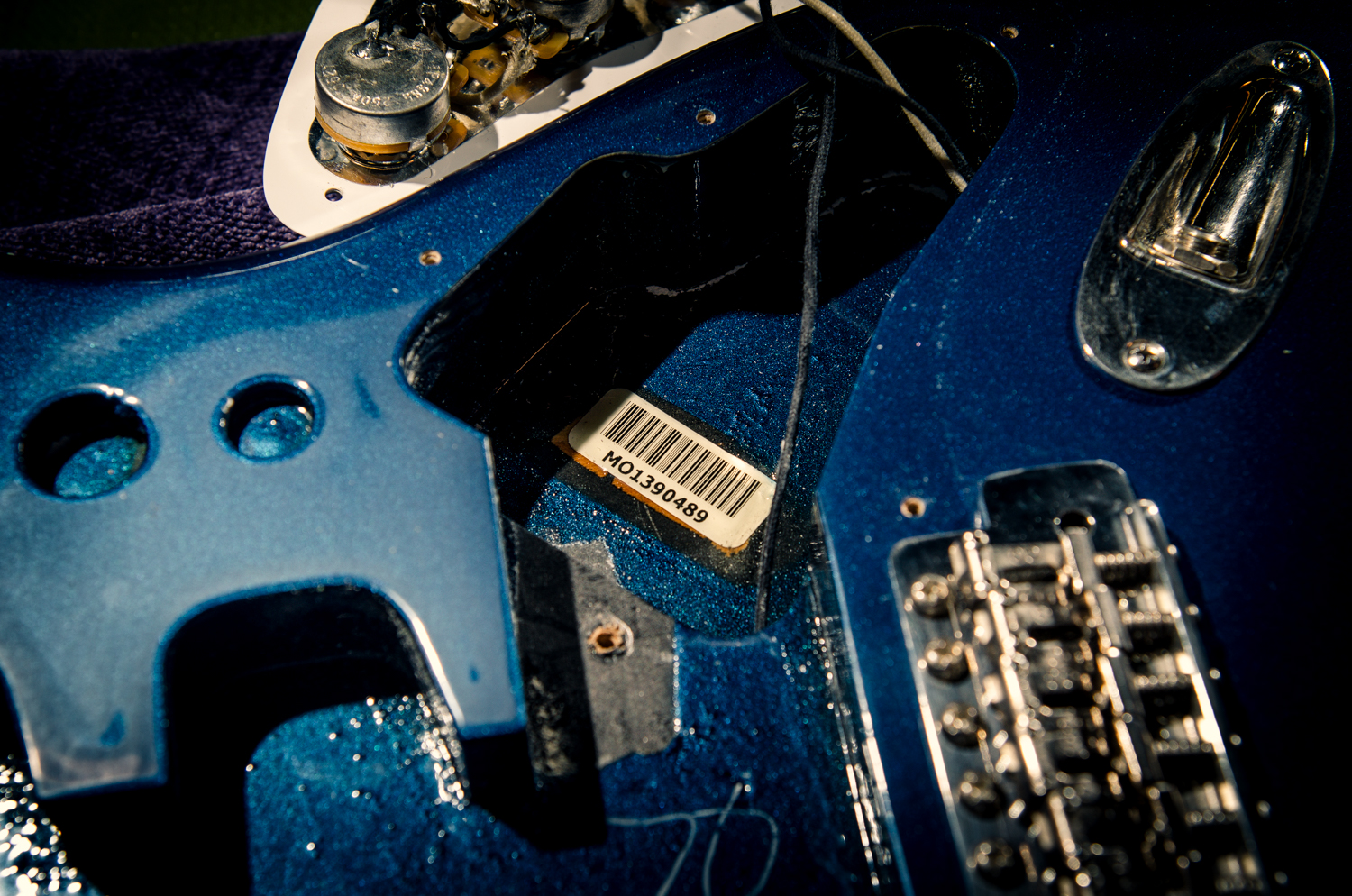

The bridge is a Callaham Mexican Std vibrato bridge and arm.

View fullsize

View fullsize

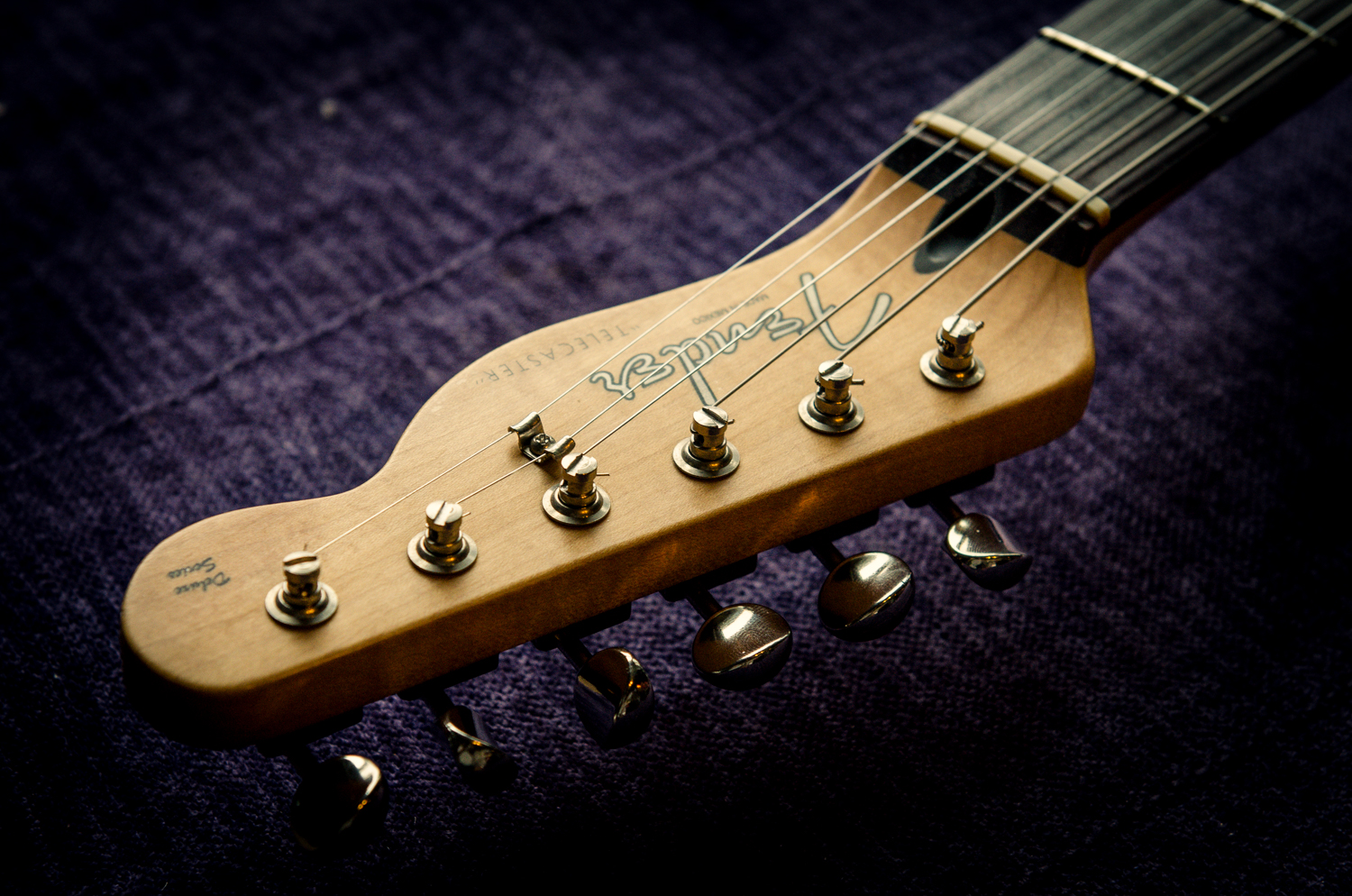

The MIM Tele neck's details:

• Indian Rosewood fingerboard with 9.5"R
• 0.870" thick, 1-5/8" wide @ 1st fret
• 0.910" thick, 2" wide @ 12th fret
• frets 0.103" wide by 0.048" tall
• vintage style locking tuners

View fullsize

2006 Fender Telecaster Deluxe Reissue [7.7 lbs] :: setup

View fullsize

A reissue Tele deluxe with aftermarket Chandler pickguard loaded with Seymour Duncan APH-2 alnico pro II humbuckers in for a setup.

View fullsize

Fender American Vintage '52 Telecaster [8.7 lbs] :: electrical check up

View fullsize

A reissue '52 Tele in for some noise issues.  A few ground solder joints needed to be touched up along with cleaning out the pots with some contact cleaner.  Back in business.

View fullsize

View fullsize

Flat frets & poor intonation :: 1988-96 Fender Custom Telecaster HH [7.0 lbs]

View fullsize

A rare neck through dual humbucker Telecaster in for a fret level, though not for fret buzzes.  These wide, flat jumbo frets were causing intonation issues for the player.  Leveling out the flat frets and recrowning them helped improve intonation up and down the neck.

Fret level & recrown :: Fender Custom Telecaster HH

View fullsize

A custom neck through Tele with dual humbuckers in for a fret dress.  Most fret levels that come through the shop are done to correct buzzing issues.  This player has a good ear and the flat spots in the jumbo frets were causing intonation issues for him.  With a wider fret, the fretted note's contact point gets pushed more towards the bridge as the fret looses it's crown when compared to narrow fret wire.  Leveling out the divots and recrowning restores the string's contact point to the center of the fret slot to provide improved intonation.
