2004 LaVancher OM [4.5 lbs] :: top crack repair.
Above is the completed top crack repair that was repaired here.
Below is the crack as it came into the shop. Note the dent on the bottom edge that was caused by a dropped cell phone.
Chubbuck Guitars / Kevin Chubbuck, making & repairing guitars in an old building just north of Boston, Massachusetts.
2004 LaVancher OM [4.5 lbs] :: top crack repair.
Above is the completed top crack repair that was repaired here.
Below is the crack as it came into the shop. Note the dent on the bottom edge that was caused by a dropped cell phone.
Late 60's Gibson Trini Lopez Standard [8.7 lbs] :: refret & bad pots
This guitar had the deepest fingerboard divots I have ever seen. These divots were addressed along with receiving new frets. The pots were dirty as well since the "control cavity" is exposed to the elements on hollow guitars. When attempting to pull the harness to clean it I was surprised to find that the knobs were glued on! The neck volume pot broke upon removal and the bridge volume was replaced as well due to a bad taper.
Look for a blog post with more details sometime next month.
Top crack set off by a phone.
And maybe a little low humidity (?) This custom OM is owned and built by Boston singer / songwriter / guitarist Chris LaVancher at Alan Caruth's shop in 2004. While at a recent gig, a cell phone was accidentally dropped by someone on stage. The guitar was on a stand when the phone impacted the top, setting off a 6" crack.

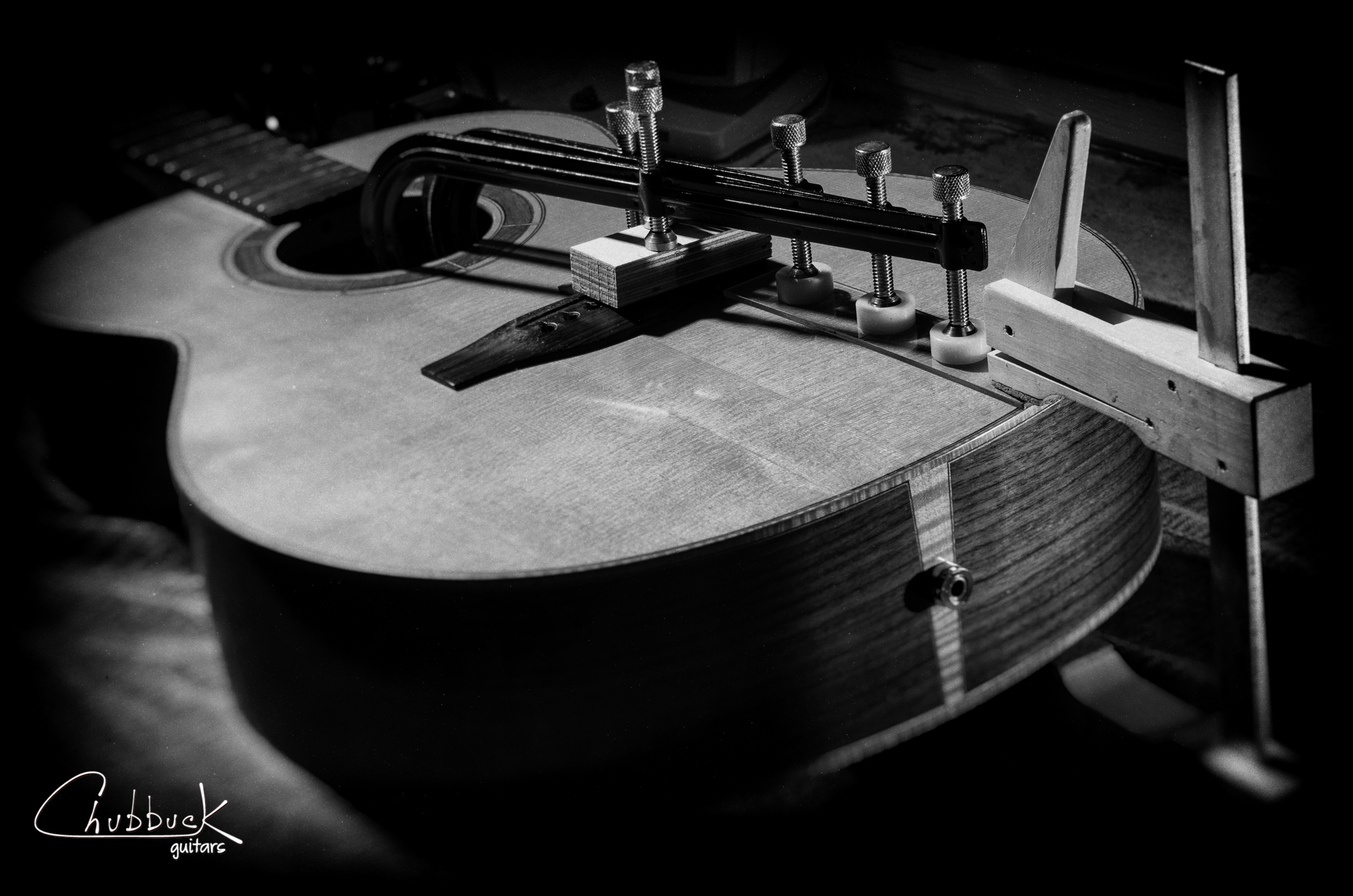

The crack was slightly open so I humidified the guitar for 24 hours and it closed enough to glue up. Hot hide glue, two pieces of plexiglass (one inside, one outside) and a few clamps make up the first part of this repair. Next up will be gluing in reinforcement cleats to help keep the crack from reopening.
1987 Carvin DC-150 :: strip & refin with a belly carve.
This quilted maple Carvin finish project went out the door last week. It's natural finished was stripped, a belly carve sculpted into the back, refinished in a nitro sunburst and converted from active to passive. More details coming in a blog post this Sunday.
EDIT: blog post here.
Phred Wolph [7.9 lbs] :: bad effects loop switch.
This is a copy based on "The Wolf" guitar built by Doug Irwin for Jerry Garcia in 1973. It has an onboard effects loop that allows you to send your signal out to your pedal board and then back to the guitar. The toggle switch that turns this loop on / off became intermittent so it was replaced with a new Carling DPDT.
